IC 434 and the Horsehead Nebula - The Crimson Veil and the Shadow Rider
IC 434 and Barnard 33 form one of the most captivating pairings in the night sky—a glowing veil of red hydrogen gas dramatically interrupted by the silhouette of the Horsehead Nebula. Located just south of the bright star Alnitak in Orion’s Belt, this region is a rich tapestry of light and shadow, where stellar radiation sculpts and illuminates dense clouds of cosmic dust.
IC 434 itself is a broad, softly glowing emission nebula, energized by nearby Sigma Orionis, and is often described in astrophotographs as a crimson curtain. Emerging from this backdrop is Barnard 33—the Horsehead Nebula—a small, dense pocket of cold gas and dust that blocks the glowing light behind it, forming the unmistakable shape of a horse’s head rearing into the void.
Though visual observation of the Horsehead Nebula is notoriously difficult—requiring dark skies, large apertures, and often a hydrogen-beta filter—IC 434 can sometimes be glimpsed as a dim, diffuse glow with careful observation.
Even when the horse itself remains invisible, this stretch of sky offers stargazers a deeper reward: a sense of cosmic scale and contrast, where glowing hydrogen meets light-swallowing dust. It is a region that invites both challenge and awe, serving as a bridge between art and science—an unforgettable target for those willing to chase shadows in Orion.
IC 434 and the Horsehead Nebula
Rating: 🟢 Solid Catch
Level: 🟡 Challenging
How:
When: late-Nov to early-Mar
🌟 A Legendary Silhouette in the Sky The Horsehead Nebula is one of the most recognizable shapes in all of astronomy, and its photographic fame makes it an irresistible target for observers hoping to connect visual experience with iconic imagery. Even if the distinct shape isn’t directly visible, simply aiming your scope at the exact spot where it lies and imagining its presence within the softly glowing veil of IC 434 creates a deeper appreciation for the hidden structure of our galaxy.
🌟 A Test of Observing Skill and Gear Adding IC 434 and the Horsehead Nebula to your list is not about an easy win—it’s about pushing your skills. Observing this pair requires excellent sky conditions, precise star-hopping, and in many cases, the use of a hydrogen-beta filter. Success (even partial) is a badge of honor for amateur astronomers. It’s a rite of passage that sharpens your technique and deepens your understanding of contrast, emission, and extinction in the interstellar medium.
🌟 A Stunning Target for Astrophotographers While challenging visually, IC 434 and the Horsehead are a spectacular prize for astrophotographers. Even modest equipment under dark skies can capture the red glow of the emission nebula and the dramatic dark profile of the Horsehead. For imagers, this region offers rich compositional potential, especially when framed with nearby structures like the Flame Nebula and Alnitak’s dazzling starlight.
🌟 Immersion in Orion’s Stellar Nursery This region lies at the heart of the Orion Molecular Cloud Complex, one of the most active star-forming areas in the sky. Observing IC 434 and Barnard 33 invites a closer look at the processes of stellar birth, dust formation, and cosmic sculpting. You’re not just looking at a pretty nebula—you’re witnessing a dynamic, evolving region where stars and planetary systems may be forming even now.
🌟 Rich Surroundings and Supporting Cast Even if the Horsehead remains elusive on a given night, the area is teeming with beauty. The Flame Nebula, Alnitak, Sigma Orionis, and even the Orion Nebula further south make this region a densely packed treasure trove of deep-sky wonders. Pointing your telescope here never feels wasted—there’s always something to admire, whether glowing gas, intricate dust, or glittering multiple-star systems.
🌟 A Journey Worth Taking Including IC 434 and the Horsehead Nebula on your observing list adds depth to your night under the stars. It encourages slower, more intentional exploration. It asks you to consider not just what you can see, but what lies just beyond your grasp—making the experience philosophical as well as astronomical. Sometimes, the value of a target isn’t just in what it reveals, but in what it asks of you.
Emission nebula: a glowing cloud of ionized gas that shines with its own light, typically powered by nearby young, hot stars.
Dark nebula: a dense cloud of gas and dust that blocks the light from stars and objects behind it, appearing as a dark patch against the brighter background of space.
IC 434 and the Horsehead Nebula
Although easy to find, IC 434 and the Horsehead Nebula/B33 are extremely challenging to see due to their dimness.

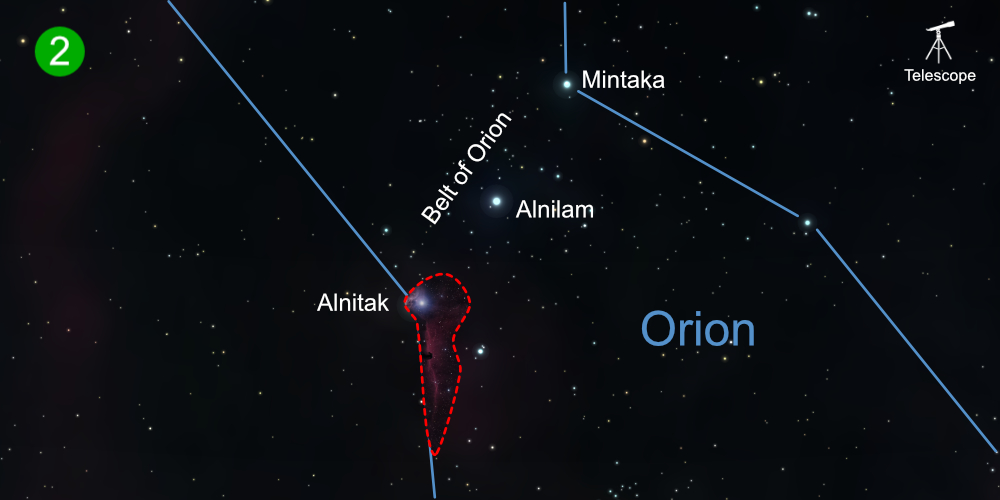

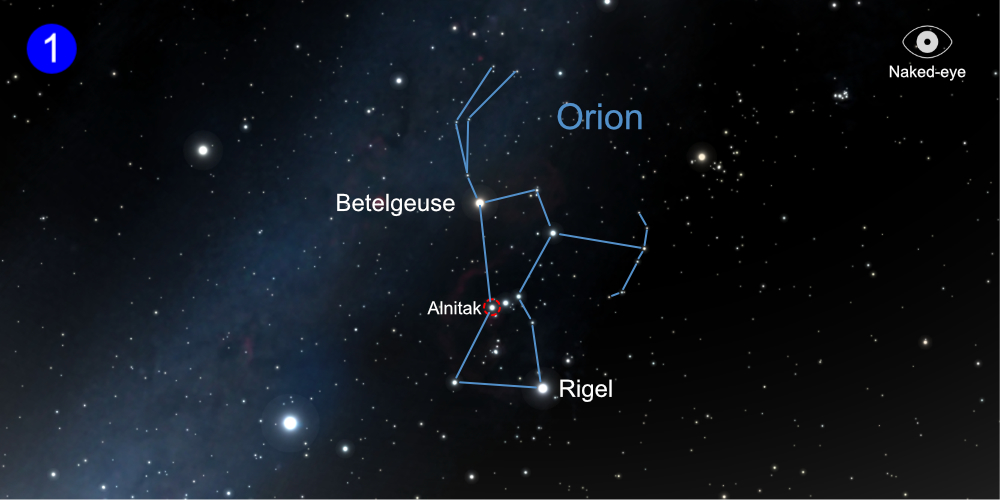

The best way to star hop to IC 434 and the Horsehead Nebula is to begin at Alnitak, the easternmost and brightest star in Orion’s Belt. Alnitak is a brilliant blue supergiant and an easily recognizable anchor point in the winter sky, making it the ideal launch point for this hop.
Center Alnitak in your finder or eyepiece. Using a wide-field, low-power eyepiece, frame Alnitak at the top of the view and scan slowly downward, especially if you’re using a hydrogen-beta filter. You won’t see dramatic features immediately; you’re searching for the faint curtain of IC 434 and the small, dark “bite” of the Horsehead within it. Keeping Alnitak just out of the field to reduce glare can also help reveal the faint nebulosity more clearly.
If you are able to see the Horsehead Nebula, count yourself lucky since so view skywatchers have achieved this goal.
IC 434 and the Horsehead Nebula
✅ Use a Hydrogen-Beta Filter A hydrogen-beta (H-β) filter is essential for visual detection of IC 434 and the Horsehead Nebula. It enhances the faint glow of IC 434 while increasing the contrast against Barnard 33’s dark silhouette. Without it, even large telescopes will struggle to reveal any detail.
✅ Observe from Bortle 1–2 Skies Dark skies are critical. Under Bortle 1–2 conditions, IC 434 becomes a faint, detectable haze, and with a large aperture and filter, the Horsehead may show as a subtle notch. Light pollution will wash out the entire region and make any visual observation impossible.
✅ Wait for Orion to Climb High Target the nebula only when Orion is high in the sky—ideally near or past the meridian. This reduces atmospheric distortion and light scattering, maximizing your chances of detecting subtle contrast and faint nebulosity.
✅ Use a Large-Aperture Telescope An 8-inch scope is the bare minimum, but 12 inches or more will offer much better chances. The greater light-gathering power helps pull in the dim glow of IC 434 and enhances the effect of the H-β filter.
✅ Avoid Alnitak Glare Alnitak is extremely bright and lies close to the nebula. Use careful positioning to minimize glare, which can easily overwhelm faint detail in IC 434 and obscure the Horsehead entirely.
✅ Acclimate Your Eyes and Be Patient Let your eyes fully dark-adapt, and take time scanning the field slowly. The Horsehead won’t pop out—it’s more of a subtle suggestion. Patience and gentle averted vision can make all the difference in detecting its ghostly presence.
IC 434 and the Horsehead Nebula
❌ Naked Eye
With the naked eye, IC 434 and the Horsehead Nebula are entirely invisible. Even under the darkest skies, there is no sign of their presence, though their location lies just below the bright eastern star of Orion’s Belt, Alnitak, which serves as the only visual anchor to this hidden celestial scene.
❌ Binoculars
Through binoculars, the result remains unchanged—neither IC 434 nor the Horsehead Nebula is visible. The bright glow of Alnitak may dominate the field, and nearby clusters or star patterns may catch the eye, but the nebulosity and dark silhouette are far too faint and small for binocular detection.
⚠️ Small Telescope
In a small telescope, such as a 4- to 6-inch aperture, IC 434 may appear as an extremely faint and broad patch of uneven brightness south of Alnitak, but only under pristine skies and with a hydrogen-beta filter. The Horsehead itself will remain out of reach, completely lost in the background.
⚠️ Medium Telescope
A medium telescope in the 8- to 10-inch range offers a slight improvement. With a hydrogen-beta filter and under Bortle 1–2 skies, IC 434 can be detected as a faint, horizontal haze. In rare cases, especially with experienced observers, Barnard 33 may present as a tiny, notch-like indentation in the nebulosity, though not clearly horsehead-shaped. Without a filter or under mediocre skies, both objects remain invisible.
✅ Large Telescope
In a large telescope of 12 inches or more, the odds improve significantly. With proper filtering and extremely dark conditions, IC 434 appears as a dim, glowing band, and the Horsehead Nebula begins to emerge—not in photogenic detail, but as a dark bump or projection cutting into the brighter background. While still subtle, this is the level where visual confirmation becomes possible for skilled observers, offering one of the most satisfying deep-sky challenges in amateur astronomy.
IC 434 and the Horsehead Nebula
IC 434 and the Horsehead Nebula are extremely sensitive to light pollution. Only under the darkest skies (Bortle 1–2) do they reveal their subtle beauty to visual observers; anything brighter reduces them to invisibility, making them among the most challenging—and rewarding—targets in deep-sky observing.
🟡 In Bortle 1–2 skies, IC 434 may appear as a faint, smooth glow with the aid of a hydrogen-beta filter, and the Horsehead Nebula can begin to emerge as a small, dark indentation against the background—subtle but real for experienced observers using large apertures. This is the ideal environment for even the faintest structures to be teased out visually.
🟠 In Bortle 3–4 skies, IC 434 becomes much harder to detect, even with filtration. Its soft glow is easily lost in skyglow, and the Horsehead Nebula is typically invisible. Imaging is still possible but requires longer exposure times and excellent contrast control.
🔴 Under Bortle 5–6 skies, the background light drowns out IC 434 entirely. Visual observation of either structure is no longer feasible, and even astrophotography becomes increasingly difficult without narrowband filters and post-processing.
🔴 In Bortle 7+ skies, the region becomes completely inaccessible for observing either IC 434 or the Horsehead Nebula. The skyglow overwhelms all trace of faint nebulosity, and only the star Alnitak will be clearly visible in the area.
IC 434 and the Horsehead Nebula
